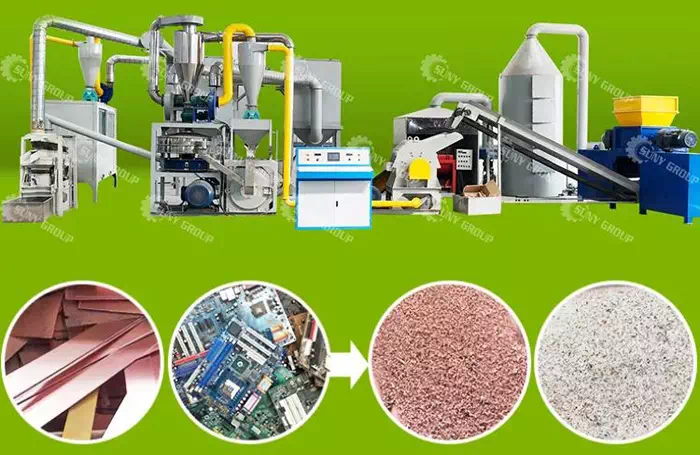

PCB Circuit Board Recycling Line

Product Introduction:

Circuit Board Recycling Line is combined with the global advanced technology. Equipment adopts advanced physical crushing recycling process; Using the advanced technology, such as: secondary crushing system, high voltage electrostatic separation equipment .etc.

Video Description:

Product Description:
Circuit board recycling line is combined with the global advanced technology. Equipment adopts advanced physical crushing recycling process; Using the advanced technology, such as: secondary crushing system, high voltage electrostatic separation equipment .etc. Equipment successfully developed, not only to improve the recovery rate of metal, metal recovery rate is as high as 98%, and prevent the secondary pollution, is currently the best equipment recycling circuit board.
PCB Circuit Board Recycling Line is used to recycle all kinds of Printed Circuit boards, such as the computer boards, cell phone boards, TV boards, copper-clad laminate, and other household appliances, and the separation of leftover material of the mixed metal and nonmetal materials.

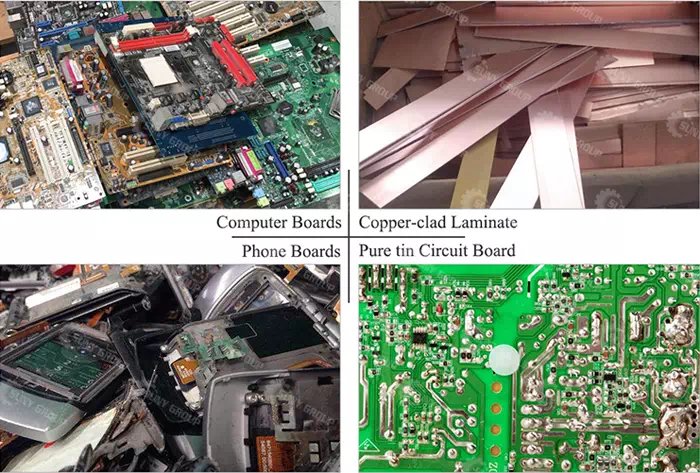

Raw Materials:
Circuit board recycling line comprehensive performance is superior, applicable to all waste circuit board, copper clad, leftover material, such as computer board, mobile phone board, TV board, etc.

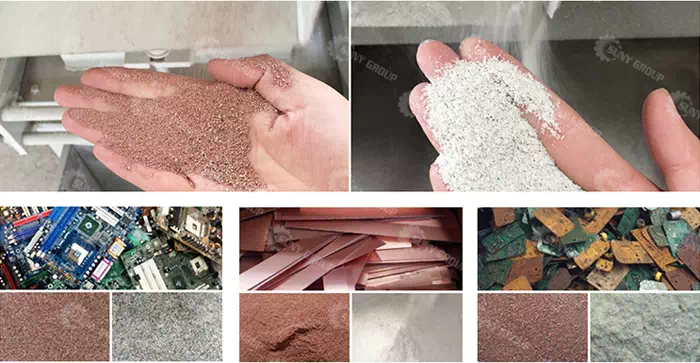

Final products:
Because of the high value of the metals, fiber and resin, there is no doubt that this scrap pcb motherboard recycling machine not only help to change waste into treasure, but also bring great economic benefits.Through years of practice and theoretical analysis, we obtain the best separation result, our scrap circuit board recycling plant separating purity can be reached to 99%.
We provide a complete set of electronic waste recycling solutions:
Equipment Structure:

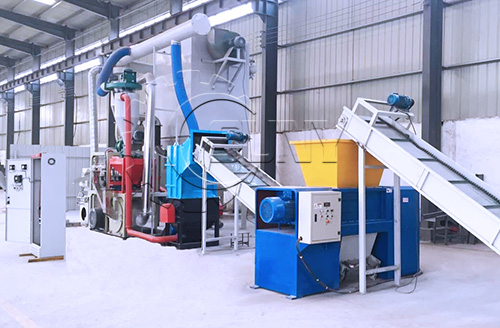

The Waste PCB Circuit Board Recycling Machine consists of shredding system, milling system, sorting system and dust collection system, the whole process of our circuit board recycling production line is controlled by PLC.

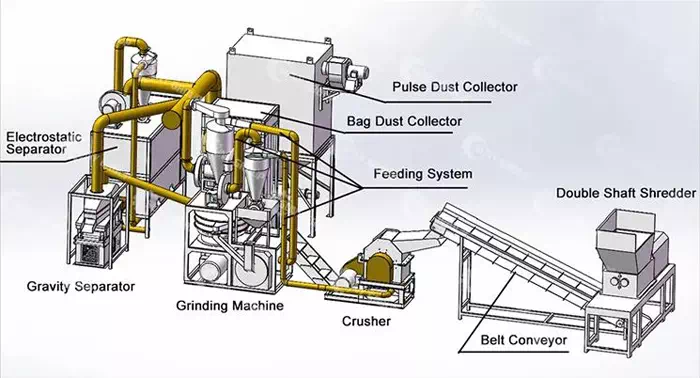

Schematic diagram of the physical recycling line for circuit board crushing and sorting.
*All rights reserved. Please do not use it illegally.
Main Equipments:

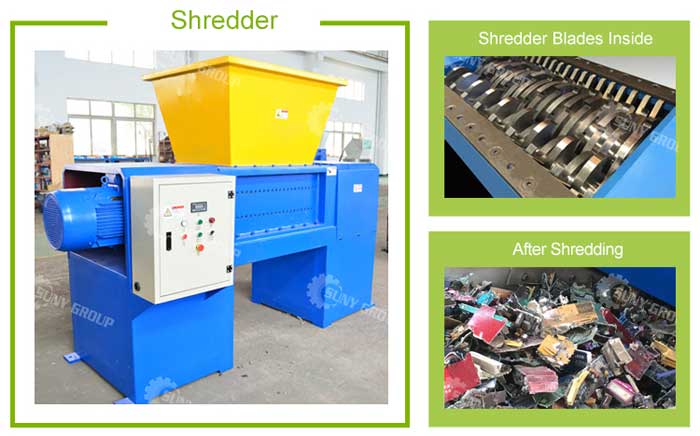

Double Shaft Shredder:The process of coarse crushing requires a double-shaft shredder to shred the material.

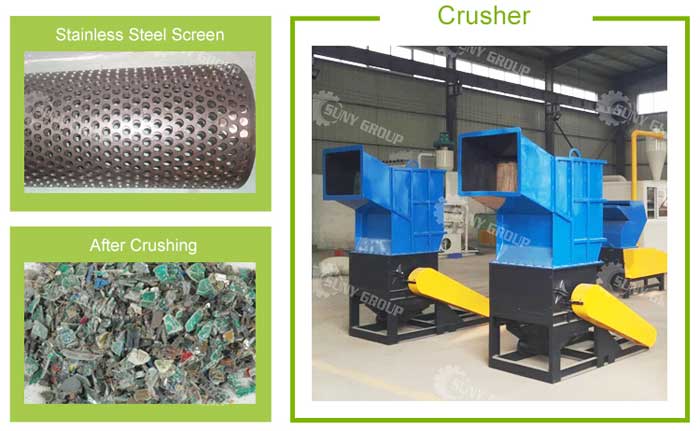

Crusher Machine:Hammer crushing can effectively break up caked materials, and the discharging size is about 20 mm.

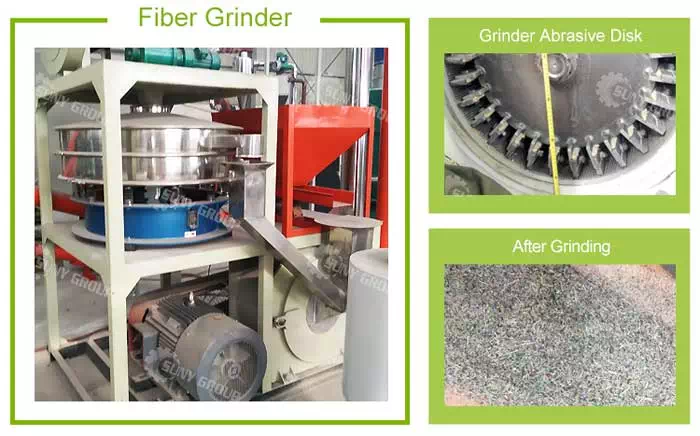

Multifunctional Grinder:The fine pulverizer has a three-layer vibrating screen for fine, uniform powder output, and running in a fully enclosed, dust-free environment under negative pressure.

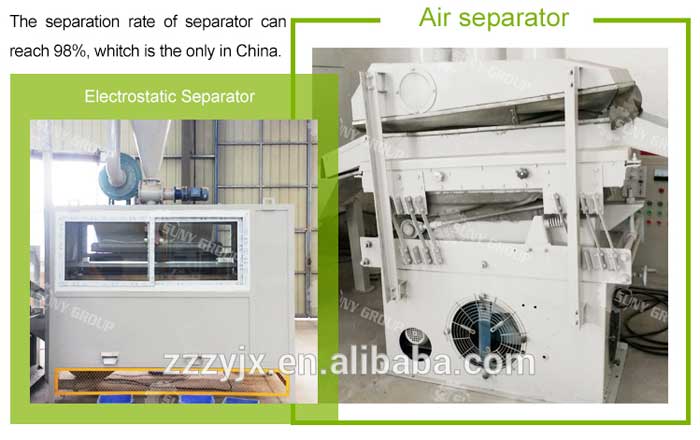

Sorting Equipment:The airflow separator and electrostatic separator each conducted two rounds of separation for metal powder and fiber powder, achieving a high material recovery rate of 99% and an output purity of 99%.

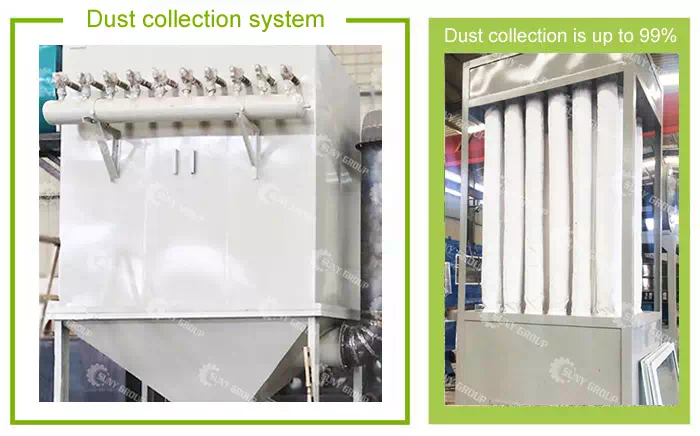

Dust Collection System:The production line is equipped with 2 pulse dust collectors, which have high dust removal efficiency and can capture dust particles larger than 0.3 micrometers with an efficiency of up to 99%.
Utilizing PLC Control:Continuous foeding. intelligent operation, automatic alarms, billingual interface, easy and efficient operation, ensuring stable equipment operation.
Work Process:
Circuit board recycling line adopts the secondary crushing system, first of all, the waste circuit board become mixed powder (metal powder and resin fiber powder); And then through the air separation equipment and electrostatic separation equipment to separate metal powder and resin fiber powder. To prevent dust pollution in the process of production, Add pulse duster after the air separation process, can effectively solve the dust pollution problem.
Main Characteristics:
1. Comprehensive performance is good, has a unique effect in computer board, computer boards, TV board and other circuit boards.
2. Reduce energy consumption, low noise, high automatic program, reduce the human input, improve efficiency.
3. Equipment adopts new impulse precipitator, no air pollution in the whole process.
4. Equipment structure is reasonable, easy operation and maintenance.
Technical Parameters:
Type Output(kg/h) Total power(KW) Occupied area(m2)
ZY-BR300 300-400 55 90
ZY-BR500 500-600 65 120
ZY-BR800 600--800 75 150
ZY-BR1000 800-1000 120 200
Test and Inspection:
Before delivery, we all equipment will imitate the real production environment, use the customer need to deal with material test, to ensure the production line performance and production meet customer requirement. We sincerely invite customers came to the scene for final test.
Related Machinery:
E Waste Recycling Plant
Product Introduction:
Suny Group is specialized in providing Complete E Waste Recycling Plant.

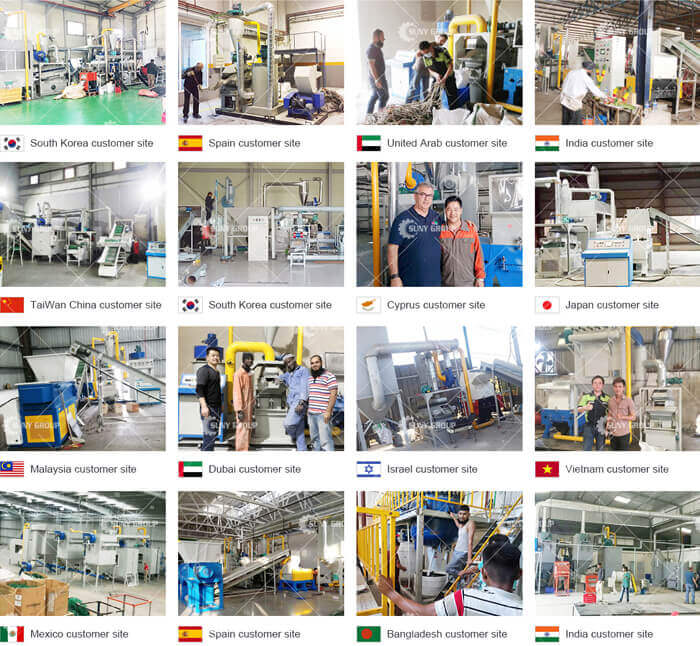

Customer Case:
