Copper Cutting Machine Used to Cut the Copper from Electronic Motors
Motor stator dismantling machine belongs to the motor dismantling equipment, through the dismantling of used motor stators, to achieve the purpose of recycling copper coils and silicon steel pieces, which can be reused for some recovered copper coils and silicon steel pieces, which can increase the economic benefits of manufacturers. This equipment has the advantages of environmental protection, and it is a good equipment for manufacturers to recycle copper coils (enameled wire) and steel pieces of unqualified motors, and it is also a scrap metal recycling equipment.

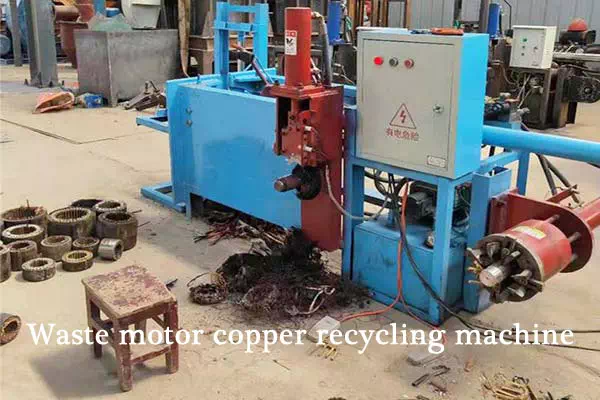

The motor stator dismantling machine mainly includes the body shell, cutting knife, support column, chopping copper positioning plate, and manual switch. First of all, the scrap motor stator is supported on the support column, and the motor stator is positioned by the chopped copper positioning plate, and the copper coil of the motor stator is chopped off by one of the foot switch control cutter; the chopped and cut motor stator with copper coil is placed on the lifting table, and the motor stator is controlled by the manual switch to rise to the positioning plate, and the positioning plate is limited to the motor stator, and then the foot switch controls the pulling pliers to let the pincers bite the copper The stator will be disassembled by pulling the copper coil out of the stator through the foot switch, and then the user can recover the copper coil and stator core according to the actual situation. This stator dismantling and cutting machine is our new stator coil dismantling machine, which can be applied to dismantle the motor coils of washing machines, electric fans, electric tricycles and other electrical products. The machine has the advantages of fast wire cutting speed, high efficiency of wire dismantling, small footprint and stable performance. Enhance the efficiency of stator repair, copper and iron separation and other work. The equipment is mainly composed of hydraulic pump, hydraulic control system, wire cutting cylinder parts, wire pulling cylinder parts, electric control system, for 8 slot stator, 12 slot stator can be dismantled.
Application of motor stator dismantling machine.
Mainly copper chopping machine (one end of the motor stator copper wire cut off) with hydraulic copper pulling machine together to recover the copper wire in the motor stator, together with the application in the motor factory on the unqualified motor stator enameled wire and steel recycling, also in some recycling motor dismantling factory applications, for washing machine motor, air conditioning compressor in the recovery of copper wire is also used in many applications.
Scrap motor dismantling equipment in the hydraulic copper chopping machine, is a kind of equipment to cut off the copper wire in the motor stator, the whole equipment is driven by hydraulic pressure, cutting the wire first scrap motor stator supported on the support column (roller structure), and by chopping copper positioning plate for the positioning of the motor stator, through one of the foot switch to control the up and down movement of the cutter and induction switch to control the upper and lower limits of the blade to chop off the copper coil of the motor stator. Scrap motor dismantling equipment in the hydraulic copper pulling machine, is a kind of motor stator in the copper wire efficiency of pulling out the equipment, in the use of the equipment before the need to cut off the copper wire at one end of the motor stator.
Structure of copper wire removal equipment for scrap motors chopping copper machine: mainly includes the body shell, cutting knife, support column, positioning plate, hydraulic cylinder, foot switch.
Motor stator dismantling machine advantages.
1. high efficiency of cutting wire (for example, cut off an ordinary 2.2kw4 motor stator end of the copper wire, it takes about 6 seconds);
2. Less waste of copper wire, high recovery rate, good economic efficiency: the use of blades to cut off the copper wire, there will be no waste of copper wire; if the use of cutting machines, etc. to cut off the copper wire will waste a lot of copper wire, in today's more expensive copper prices can save a considerable amount of money;
3. can adapt to different sizes of motor stator copper wire disassembly: can cut the copper wire motor stator range: seat number 80-260 seat single-phase or three-phase asynchronous motor stator (if you need to disassemble the motor stator to 315 seat number, you can use our double-headed copper chopping machine, with a thin shaft cut 80 - 260 seat number of motor stator with a thicker shaft) A head to disassemble the motor stator to 315 seat number);
4. Smaller for the steel piece in the stator;
5. Good working environment, energy saving, no dust (the workshop will produce a lot of dust when using the cutting machine to cut the copper wire, the environment is poor, and prone to occupational diseases);
6. Using hydraulic pressure to cut off the copper wire, force, using 3kw of oil pressure type motor, the amount of worker labor is small.
