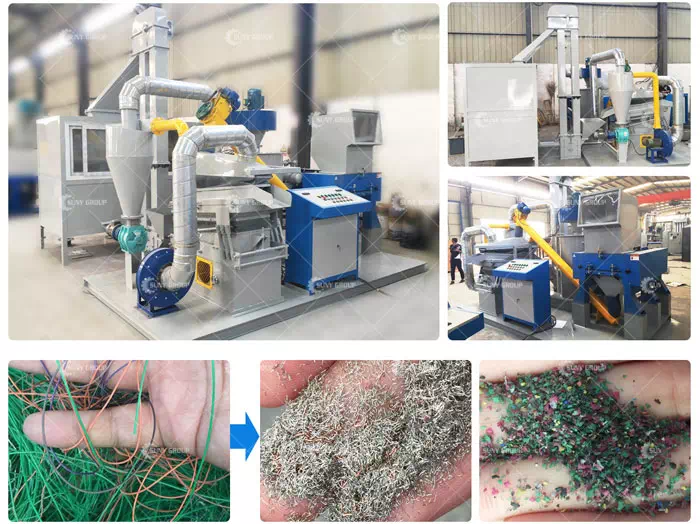

Working principle of waste wire crushing separator
Feed the waste cable material to the feed port of the crusher. After being crushed to a certain particle size in the crusher, the crushed waste cable material automatically falls on the conveyor belt of the conveyor, so that the crushed material is transported to the airflow. Sorting in the sorting machine. Under the dual action of vibration and wind, the materials entering the air separator are screened out from the copper outlet at the front of the air separator, and the plastic is screened out from the rear plastic outlet. We are also equipped with front and rear vibrating screens to further screen the materials screened by the air separator to improve the purity of the materials. The whole process is equipped with a bag filter, and there is no dust pollution.
Waste circuit boards recycling plant
Waste wire crushing separator separation process:
1. The waste wire crushing separator crushing device adopts the wire and cable crusher produced for primary crushing, with considerable output and reasonable efficiency.
2. The separator adopts two separation methods of sieve and specific gravity, which is compatible with the separation of various types of cables.
3. The secondary core separation system adopts piezoelectric electrostatic separator (electricity), and the metal separation rate is over 99%.
4. The waste wire crushing and separating machine has a single feeding, multi-stage coordination of crushing, crushing and separation. The design of the equipment production line is reasonable. The copper in the cables separated and recovered by this machine can maintain the original copper quality, and can also recycle plastics, etc. Features.
The environmentally friendly dry waste wire crushing separator can process a series of wires such as home improvement wire, miscellaneous wire, capillary wire, network wire, single-strand wire, industrial cable, communication wire, automobile wire, etc. It can also be used to recycle various single-strand aluminum core wires. . The processing capacity is: 300-500kg/h (the processing amount will vary depending on the raw materials), and the separation rate is >99.6 (the small particle size of the material should be greater than 0.2mm).
